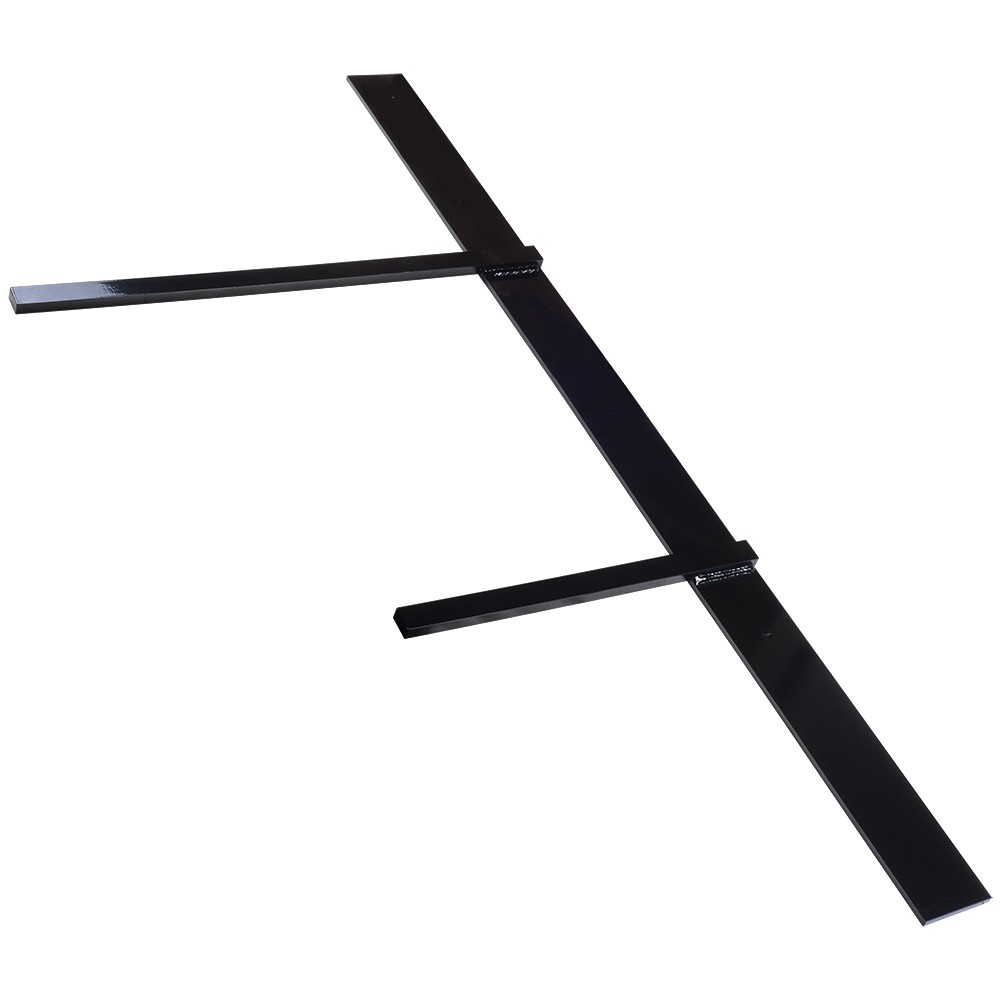

Bearsden Floating Vanity Support

The Bearsden floating vanity support is designed to support a floating vanity with an additional support arm for a shelf. The Bearsden installs pre-drywall material to the side of the stud with two arms that extend out to support the counter and also provides a shelf support.  The 1" rod is placed 33" from the bottom and provides 20" of support for no greater than a 24" deep counter.  The second 1" support arm is placed at 15" from the bottom and will support a 16" deep shelf.  Perfect for extra storage. A Bearsden floating vanity bracket should be installed on every stud for the length of your counter.


Vanity Supports will comply with the Americans with Disabilities Act (ADA) when installed per the requirements of the Accessibility Guidelines, Section 606 Sinks, of the Act.

Product Overview:

  • Sizes: 20x48
  • Finishes: Black
  • Material Thickness: 1/4" plate, 1" Rod
  • Holes: 4 - 1/4" Straight Holes
  • Screws Not Included
  • Carry Capacity: 200 Pounds

Watch Our Video On: Floating Vanity Installation
Recommended Install Kit:Standard Fastener System Sku 39972

Federal Brace recommends using a vanity support that extends within 4" of the front edge of the vanity. Excessive overhang may cause significant force in a point load situation. Maximum load carrying capacity on vanity support brackets is 200 lbs. with 1/32 deflection.
