Steel Shelf Brackets for Heavy Wood Shelves: A Complete Guide
Floating shelves look simple. The nice clean lines and modern appearance give the viewer a false sense that it is nothing to install one of these shelves — until they start to sag. If you're installing heavy wood shelves, especially hardwood slabs or thick live-edge boards, the bracket behind the shelf is doing serious structural work. A lot hinges on how well that bracket is fastened to the support structure and whether the bracket itself is adequate for the job.
Here’s how to choose the right steel shelf bracket — and avoid costly mistakes.

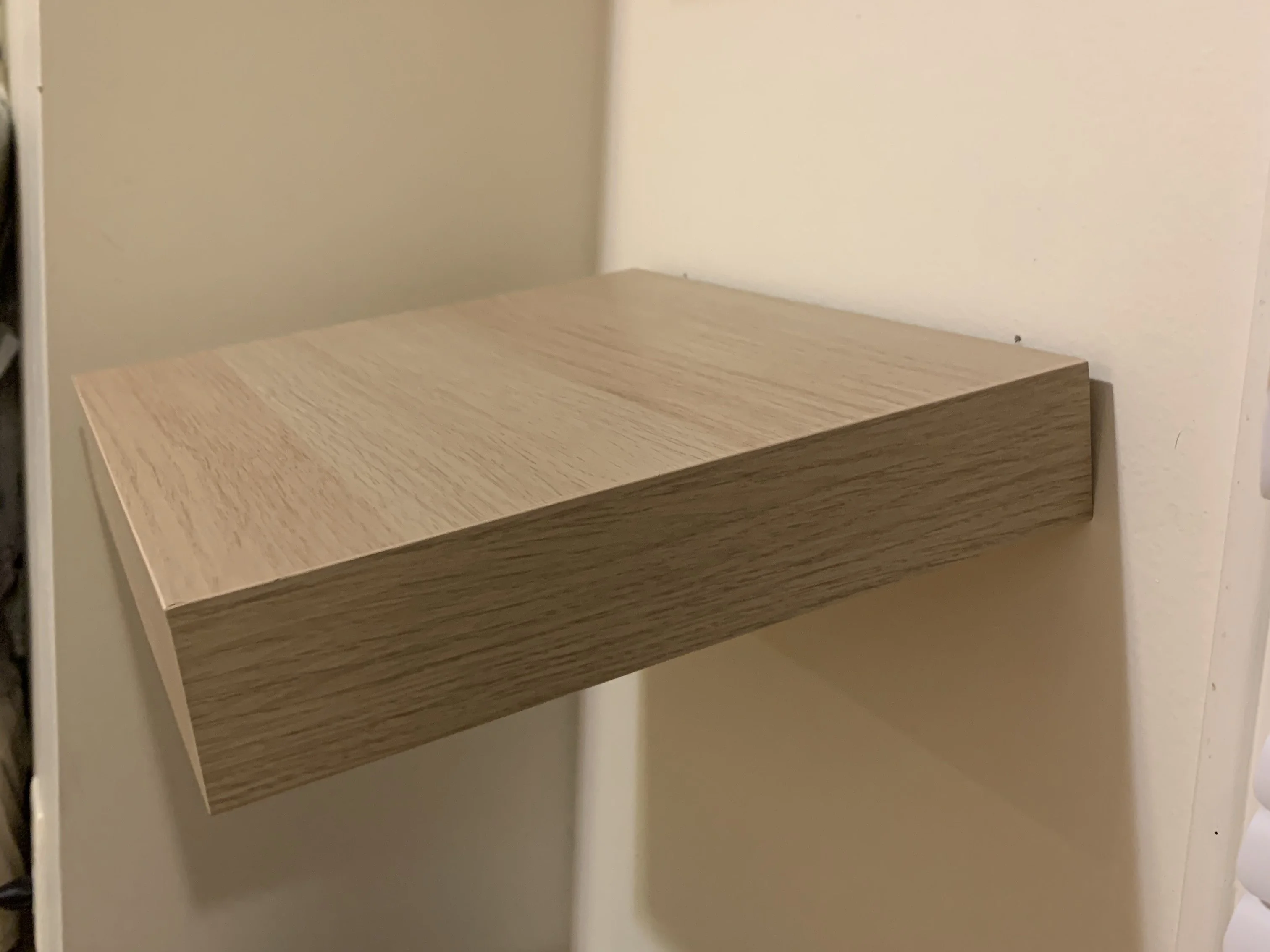

Why Heavy Wood Shelves Fail
Shelves that droop or snag are annoying and present risk to the items on the shelves. In the cases where a shelf fails completely there can be variety of reasons, including:
The bracket wasn’t rated for the load with steel material that is too thin
The bracket arm was too short
The shelf bracket spacing was too wide
The bracket wasn’t mounted into studs or adequate anchors to hold the weight of the shelf
Wood may look lightweight — but a 2–3' thick hardwood shelf can be extremely heavy, especially at longer spans. So, let’s look at factors to take into account when installing a floating wood shelf.
Step 1: Understand Shelf Weight
The weight of a wood shelf is influenced by the species of the wood the shelf is made out of (oak, maple, walnut are heavy), the thickness of the wood shelf and the overall size (depth x length) of the shelf. Now, add to that weight whatever the shelf will hold — books, appliances, décor — and the load increases significantly. The steel brackets used in such an installation must support both the shelf and the live load.
Step 2: Choose the Right Steel Thickness
Decorative brackets, commonly found in the box store floating shelf kits, are made from thin stamped metal and often sport weak welds. These brackets do not represent a strong structural solution for holding heavier loads. These should be solely used if the shelf is light and the contents on it are light as well.
For heavy wood shelving, you want to use brackets with thick steel construction and strong, high quality welded joints in the case of rod brackets. Steel brackets made out thick steel will incur minimal deflection under load. This makes for a sturdy support of your belongings. Rigid steel also prevents sagging over time.
Step 3: Match the Bracket Arm to Shelf Depth
No matter the thickness of your steel shelf bracket, if the arms are not of adequate length to support the shelf, it will not be properly supported. A good rule of thumb is the horizontal arm should support at least two thirds ( ⅔ ) of the shelf depth.
For Example:
12' deep shelf → 8' bracket arm minimum
15' deep shelf → 10' bracket arm minimum
Longer arms provide better load distribution, but the arms obviously have to fit within the shelf depth..
Step 4: Space Brackets Properly
Another factor that influences support for floating shelves is how the shelf brackets are spaced relative to each other. Typical spacing may be 16' on center (ideal when mounting to studs) or 24' on center when lighter loads permit. The placement of supporting brackets will be affected by the substructure format. In some instances additional blocking should be used to tie the brackets into. Also, heavier shelves or stone tops may require closer spacing. Remember: the more brackets used the less stress per bracket.
Step 5: Hidden vs Exposed Shelf Brackets
Shelving can be supported in a floating configuration, with the supporting brackets hidden, or in a wall shelf format where the supporting brackets are visible. The installations of these to shelf formats are similar in sequence, but the shelves themselves have some distinct characteristics.

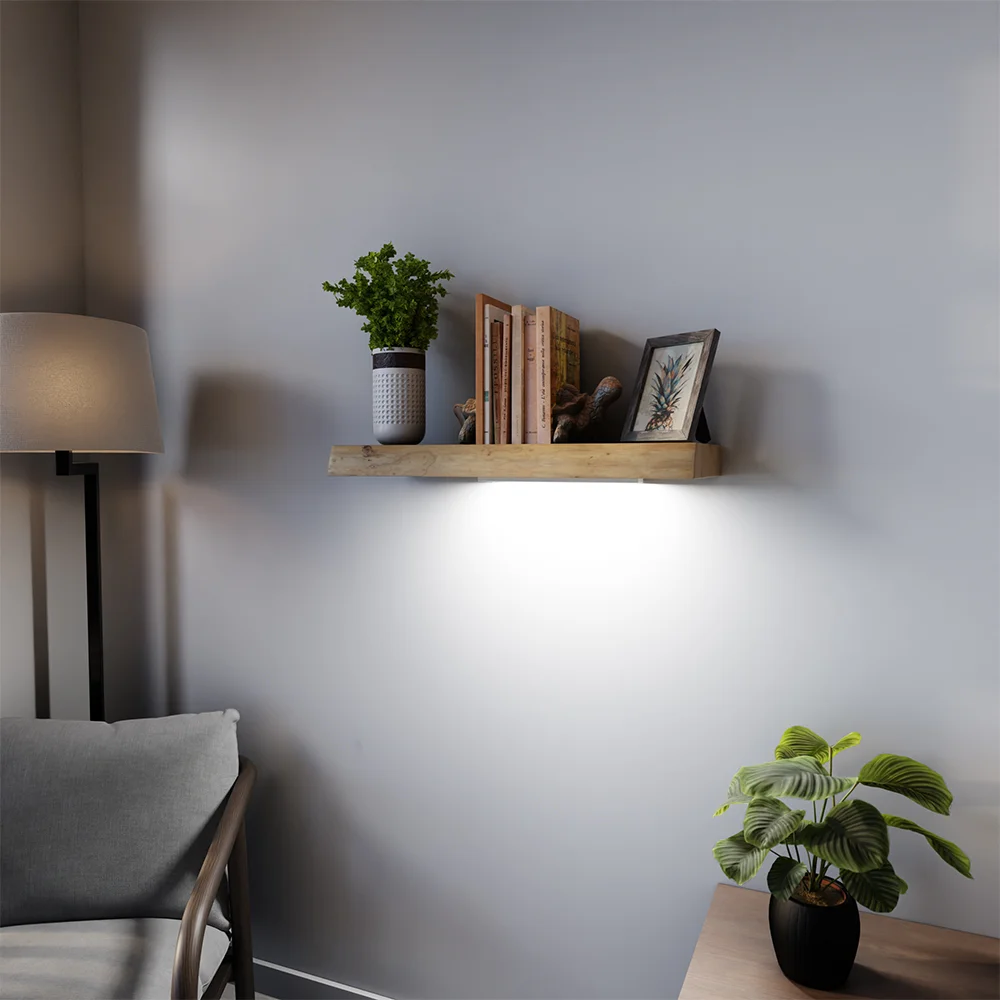

Hidden Shelf Brackets
Clean, floating appearance
Require precision installation
Excellent for modern designs
Generally carry lighter loads

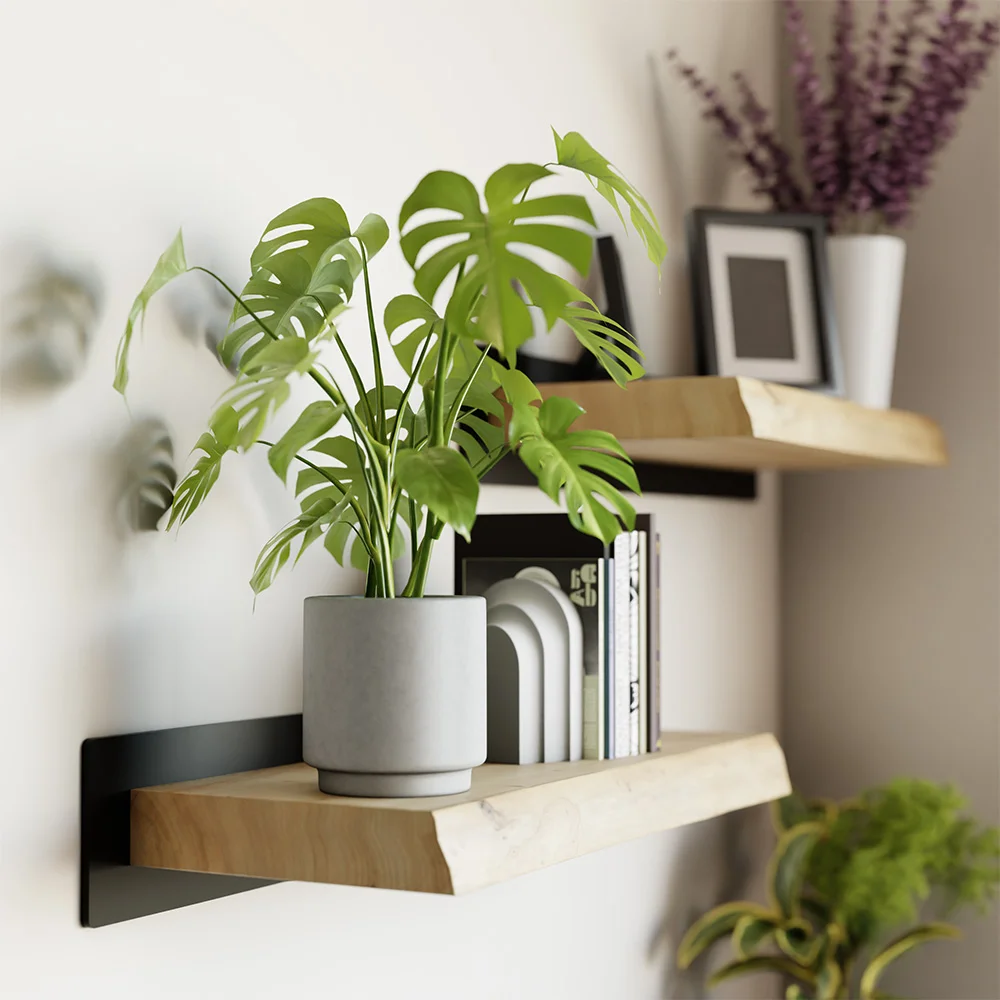

Exposed Steel Brackets
Architectural look
Easier installation
Can be decorative or industrial
Often include gusseted brackets
Installation Matters as Much as Steel
How a shelf bracket is installed is the greatest factor in determining the integrity of a shelf. Even though a strong bracket is used, if the installation is not adequate, the system will fail. Here are some considerations on every shelf install:
Mount brackets into substantial substruction. If shelf brackets are only installed into drywall, the system will likely fail.
Fasten the shelf bracket to studs or use adequate anchors to hold the weight.
Make sure the fasteners used are of adequate length. Short fasteners result in weak shelves.
When possible, always anchor shelving into structural framing.
Final Takeaway
Heavy wood shelves demand serious support. If the shelf matters, the bracket matters more. Choose steel brackets, size them correctly, and space them intelligently. When strength, precision, and longevity matter, steel shelf brackets aren’t a luxury — they’re a necessity. Check out Federal Brace’s full like of high quality Shelving Brackets, or if your job requires customization use our Quote Request Here.
