Atlas ADA Floating Vanity Support

ADD TO CART

OVERVIEW

**THIS PRODUCT SHIPS FREIGHT REGARDLESS OF QUANTITY**

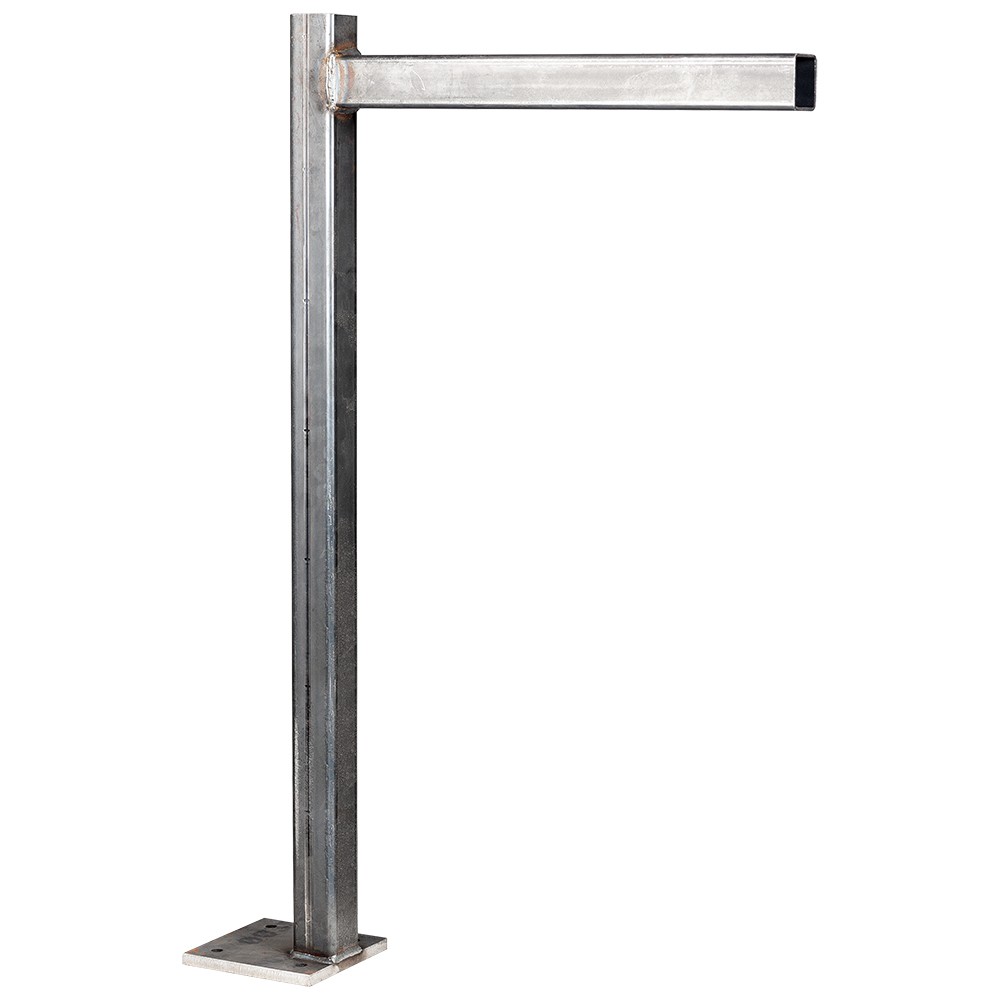

The Atlas ADA Floating Vanity Support by Federal Brace incorporates the sturdy structural construction of the Atlas Floating Vanity Support with an ADA compliant configuration for use with your floating vanity and floating stone surfaces. The Atlas ADA Floating Vanity Support is made of steel tubing with a heavy-duty 0.50" thick metal foot plate for fastening the ADA support into the structural substrate. The holes in the footplate allow for large anchors so that you get maximum support out of your Atlas ADA Floating Vanity Support. Mount your vanity with the floating cabinet or simply float your stone slab with sink installed on the Atlas ADA Vanity Support. This system provides versatility and strength in support of your ADA Vanity.

The Atlas is typically used by contractors in commercial, heavy duty applications or professional home installation. Since professional guidance is suggested when installing this vanity support, we do not provide installation instructions.

This support bracket will assist with the process or following ADA guidelines in a residential bathroom. To meet ADA compliance, sinks shouldn’t be mounted higher than 34 inches from the floor, and they should have a knee clearance of 27 inches high, 30 inches wide, and 11 to 25 inches deep.

SPECIFICATIONS
  • Sizes: 37.5" Tall, 6"x6" Mounting Plate
  • Finish: Unfinished Steel
  • Material Thickness: 11 Gauge Tube
  • Holes: 4 - 0.4375" Straight Holes
  • Screws: Bearing Plate - 3/8" Anchors Required
  • Carry Capacity: (2) - 1500 Pounds, (3) - 2000 Pounds
  • Fasteners Not Included
  • Recommended Fastener Kit: 39972
  • What's in the Box: 1 Atlas ADA Floating Vanity Support
  • Sold as a Single Unit
