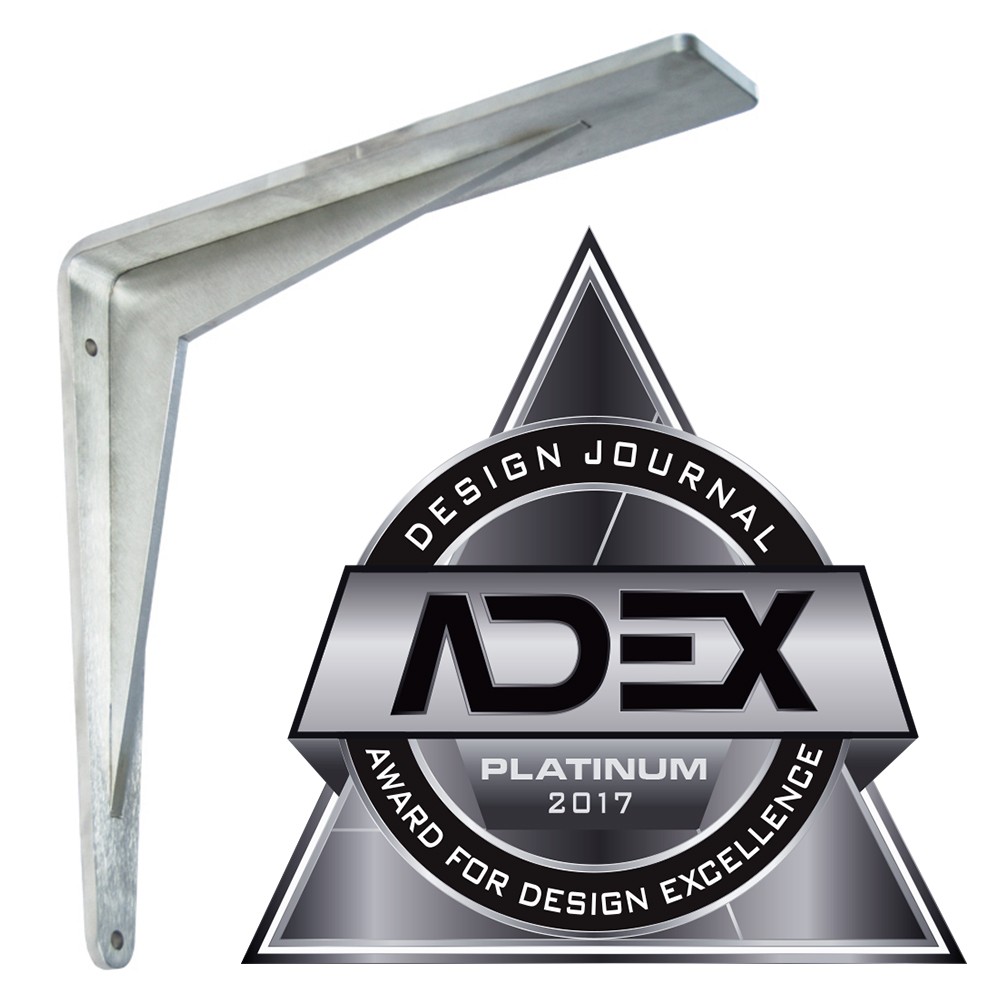

Chevron Countertop Support Bracket



The Chevron Countertop Support Bracket by Federal Brace has a slim gusset that provides additional support for heavier stone countertops such as granite, quartz, concrete and other solid surfaces. The Chevron is the perfect selection for supporting your wall hung counters, floating desks, etc. with no worry of knee knocking. A 500 pound carry capacity makes it perfect when there is no other support available. Our Chevron Countertop Brackets are designed to provide the strength that comes from a gusseted metal bracket. The material thickness of the Chevron Bracket is 1/4” and the gusset provides additional resistance to deflection. The Chevron style countertop bracket is suggested for use in all standard applications where a countertop bracket is used – island extension, half wall or pony wall applications and wall shelf mounted. The Chevron is not useful in the elevated countertop application

  • Sizes: 10x10, 16x16 and 18x18
  • Finishes: Unfinished Steel, Stainless Steel, Flat Black, Flat White
  • Material Thickness: 0.25"
  • Holes: 3 - 0.26" Straight Holes
  • Carry Capacity: 500 pounds per bracket
  • Fasteners Not Included
  • Recommended Fastener Kit: 39972
  • Whats in the Box: 1 Chevron Countertop Support Bracket
  • Installation Tip: Use a countertop support that extends to within 4" of the edge of your countertop
