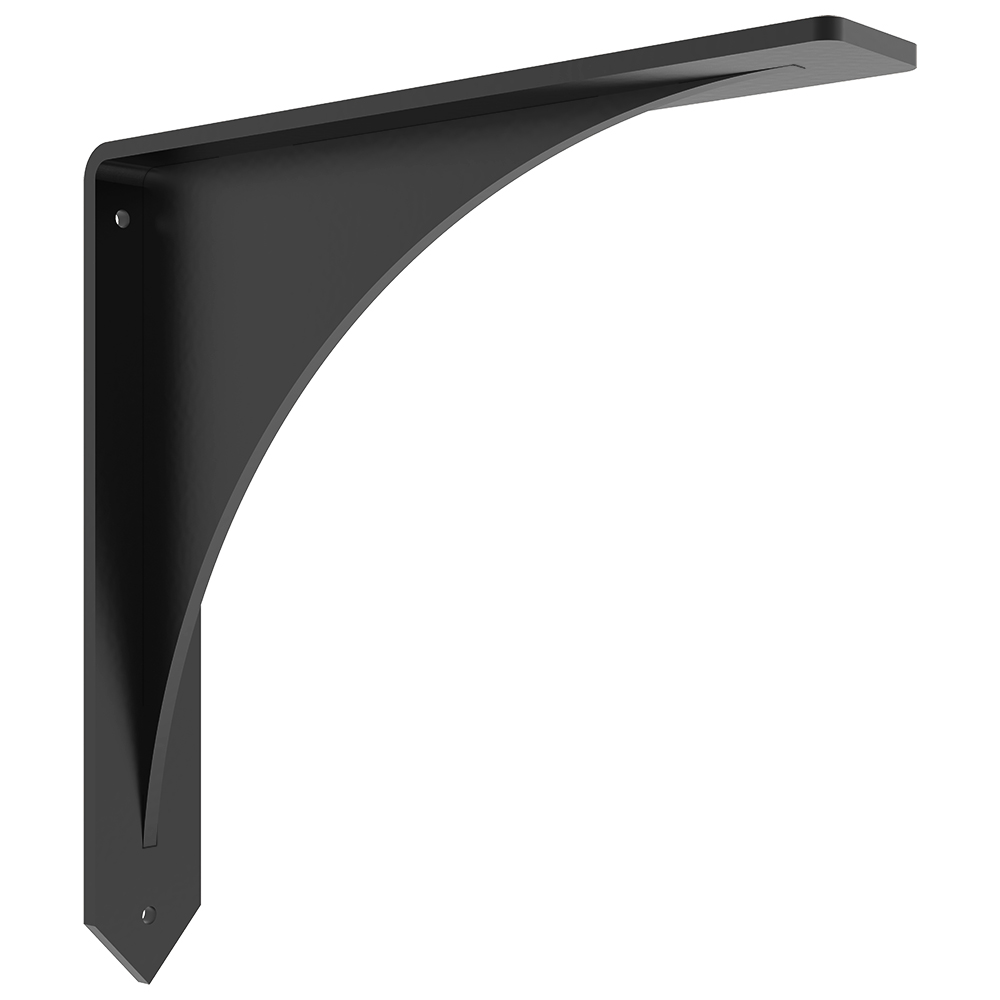

Arrowwood Granite Countertop Bracket



The Arrowwood Granite Countertop Bracket by Federal Brace is useful for wall hung applications when additional support is required. This low profile countertop support is perfect for the large counter overhangs of granite and quartz. Maximum leg room is provided by the low profile gusset. If the steel finish is selected, the bracket will arrive unfinished and will need to be painted or clear coated to prevent oxidation. Our Arrowwood Countertop Brackets are designed to provide the strength that comes from a gusseted metal bracket. The material thickness of the Arrowwood Bracket is 1/4” and the gusset provides additional resistance to deflection. The Arrowwood style countertop bracket is suggested for use in all standard applications where a countertop bracket is used – island extension, half wall or pony wall applications and wall shelf mounted. The Arrowwood is not useful in the elevated countertop application.

  • Sizes: 8x8 to 24x24
  • Finishes: Unfinished Steel, Stainless Steel, Bronze and Flat Black
  • Material Thickness: 0.25"
  • Holes: 3 or 5 - 0.26" Straight Holes (Determined by SKU)
  • Carry Capacity: 500 Pounds Each
  • Fasteners not included
  • Recommended Fastener Kit: 39972
  • Whats in the Box: 1 Arrowwood Granite Countertop Bracket
  • Installation Tip: Use a countertop support that extends to within 4" of edge of the your countertop
