Corbel Rib Support

ADD TO CART

OVERVIEW

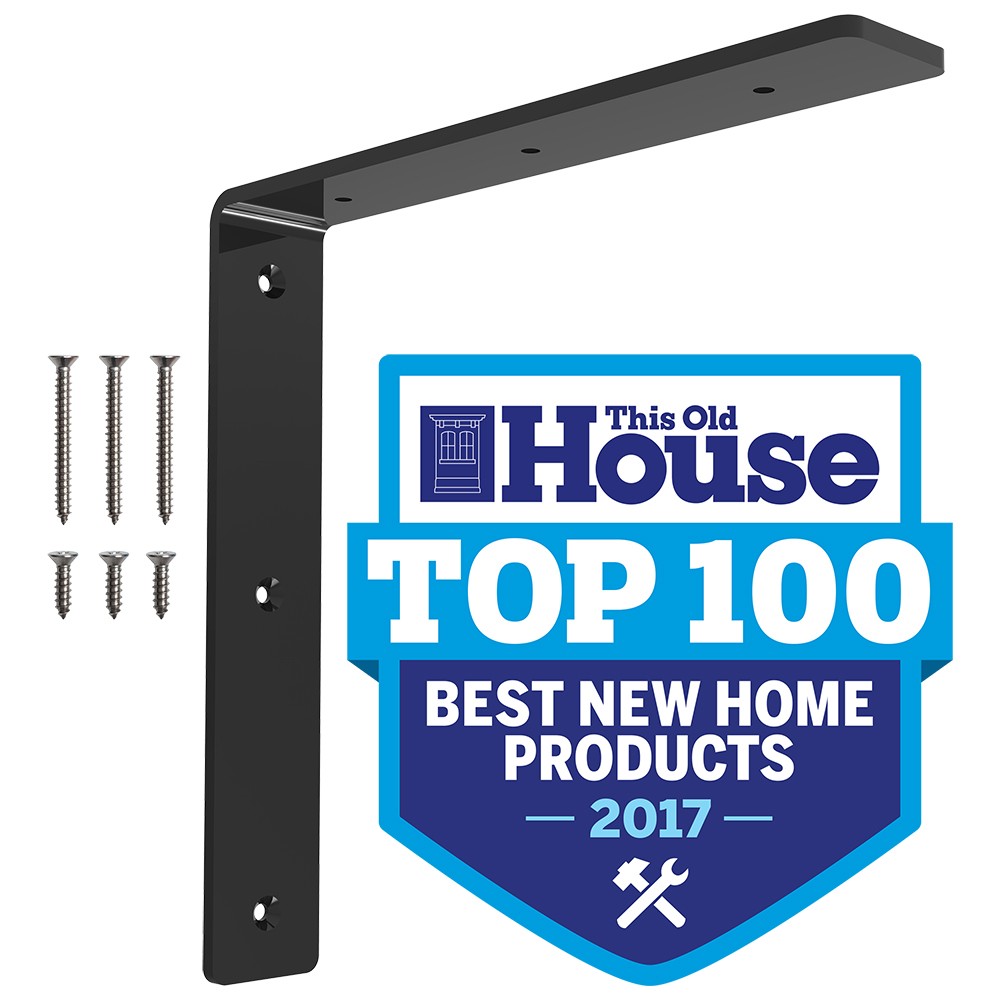

Corbel Ribs by Federal Brace are designed to give your wood corbel strength and carry capacity. The corbel rib "L" bracket will mount into a stud where you desire the support, the corbel is then attached with countersunk holes on the top flange of the rib and provides a flush mounting surface. Available in multiple sizes to fit most corbels and finished in a black powder coat for ultimate protection. When the wood corbel is to be used for more than a decoration, the Corbel Rib is the perfect solution to carry weight with a 375 pound carry capacity.

If you need assistance determining whether this mount system can fulfill your project needs or you do not need weight bearing capacity, contact Customer Support or checkout the Corbel Mount System, designed for light duty purposes.



SPECIFICATIONS
  • Sizes: 6x6, 8x8, 10x10, 12x12
  • Finish: Black
  • Material Thickness: 0.25"
  • Holes: Determined by SKU, please see Spec Sheet for more information
  • Carry Capacity: 375 Pounds
  • Fasteners Included
  • What's in the Box: 1 corbel rib support, (2) 1/4" x 2.5" flat phillips tapping screw stainless, (3) 1/4"-20 x 1" flat phillips wood screw - zinc, (2) 3M VHB double coated tape, clear, PK 250 3/4" circle
