Liberty Hidden Counter Corner Support




  • Orders for more than available quantity will not be processed.
  • All sales on Clearance items are final.

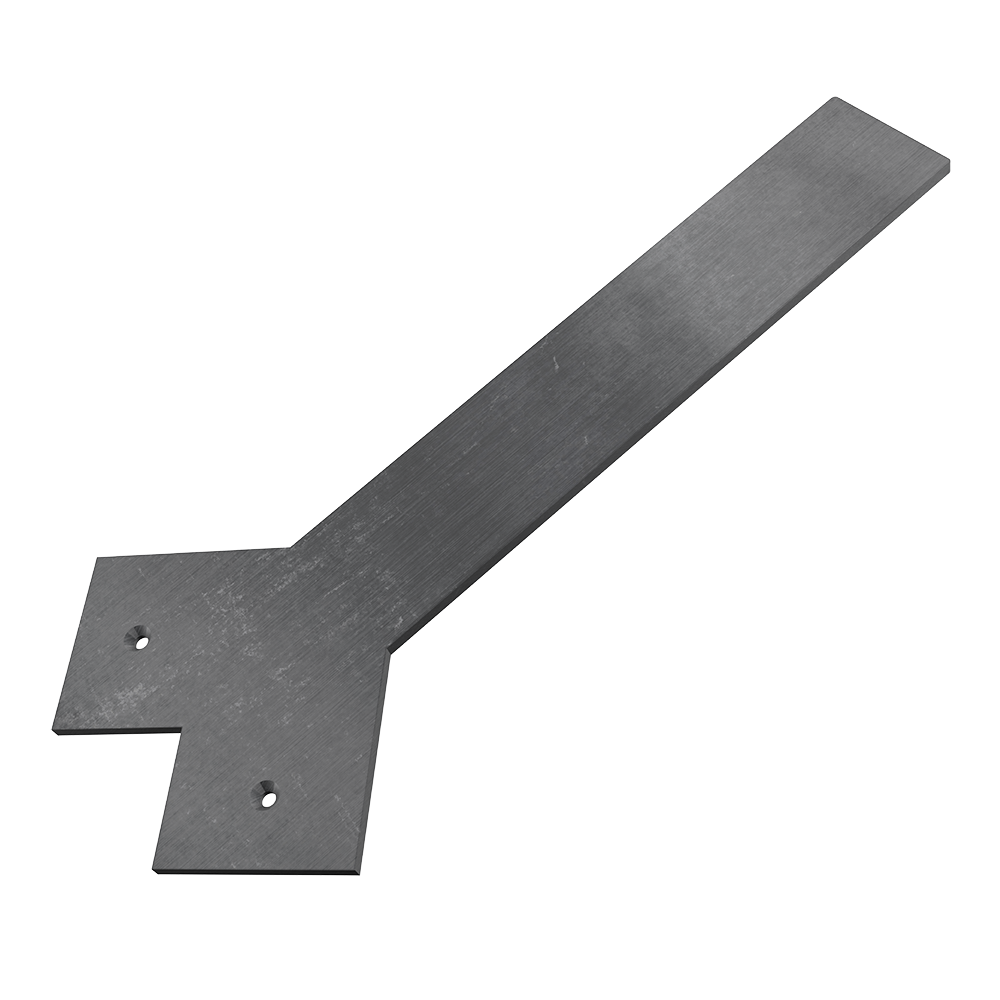

The Liberty Hidden Counter Corner Support by Federal Brace is a flat Y plate shaped bracket that is designed to hold corner countertop overhangs mounted to a knee wall to create a floating counter appearance. This bracket comes with an additional 3.5” length plate to account for mounting into the stud.

Each hidden countertop corner support can hold up to an astounding 375 pounds when installed per our installation guidelines. This allows you to safely mount thick granite, quartz, marble, other natural stones and concrete countertops.  Route out the top of the knee wall for a flush mount hidden bracket that allows for plenty of chair and leg room. Finished in black, white and an untreated raw steel that is ready for painting. If the steel finish is selected, the bracket will arrive unfinished and will need to be painted or clear coated to prevent oxidation. The brackets come in several different sizes starting from 12 inches going up to 17 inches.

The best part about the Liberty Hidden Counter Corner Support is the easy installation. Simply measure the spacing, mark the dimensions, route into the wood for a flat application and attach the bracket by drilling. The bracket has countersunk holes to ensure that countersunk screws are used to keep the bracket flush.

  • Sizes: 12", 14", & 17" (Support measurement, plate will be 5.23" longer for mounting)
  • Finishes: Unfinished Steel, Flat White, Flat Black
  • Material Thickness: 0.25" (12" support), 0.375" (14" & 17" support)
  • Holes: 2 x 0.27" Countersunk Holes
  • Carry Capacity: 375 Pounds Each
  • Fasteners Not Included
