Low Profile Floating Shelf Bracket

ADD TO CART

OVERVIEW

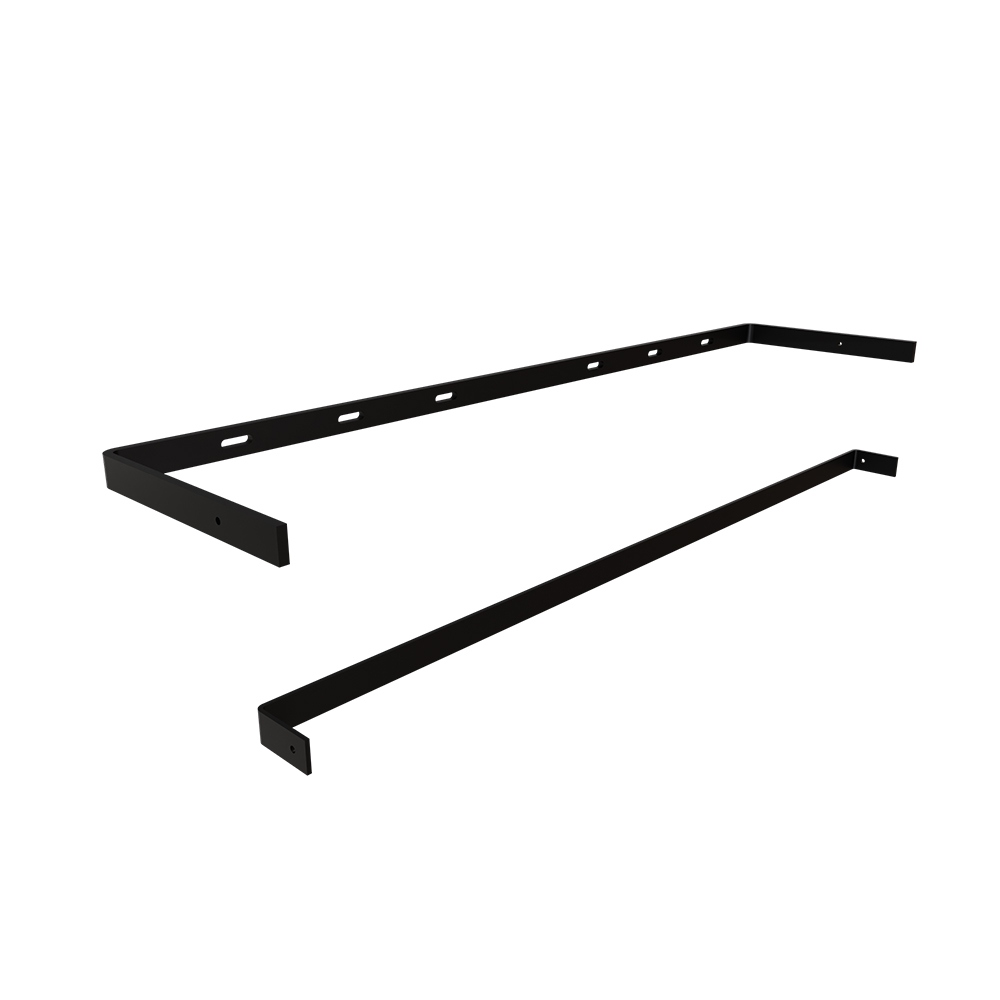

The Low Profile Floating Shelf Bracket by Federal Brace provides sturdy support with a shorter floating shelf profile. This floating shelf bracket is designed to carry up to 50 pounds of distributed load while having an overall height of under 1 inch so that a shelf box profile may be sleek and narrower than a box built around standard 2x4 framing or on other standard metal floating shelf brackets on the market. The Low Profile Floating Shelf Bracket includes an exterior "U" shaped support member that fixes to the wall using 1-inch slots cut into the back flange of the shelf bracket. A cross rib member is used to tie the support arms of this exterior bracket together providing increased strength and resistance to deflection. The resulting self bracket offers superior support in a low profile format. Note: When building the shelf box, space will need to be made on the interior for the box to include fastener used in the rib to exterior bracket connection.

Shelf box NOT included.


The Low Profile Floating Shelf Bracket features an all-new innovative gusseted support bracket designed to improve the overall carrying capacity of the shelf with a thinner, aesthetically pleasing profile. The Low Profile Floating Shelf Bracket comes to you in a powder coated gloss black finish and includes screws to attach the inner gusset rib. Four slots are provided for adjusting the placement as needed. Slots are sixteen inches on center. Arms extend from both ends of the bracket for insertion into the floating shelf box. When installed correctly, the Low Profile Floating Shelf Bracket has a 50-pound carrying capacity. We recommended not exceeding this weight to avoid shelf deflection.

SPECIFICATIONS
  • Sizes: 19.75"x8"x0.88"
  • Finishes: Black
  • Material Thickness: 0.25" Bracket 0.12" Rib
  • Holes: 4 - 0.25" Slots & 2 - 0.18" Striaght Holes
  • Screws: (2) #8-32 x 3/4" Pan Head Screws & (2) #8-32 Nuts (Included)
  • Carry Capacity: 50 Pounds
  • Sold as a Single Unit
  • Wall Fasteners Not Included
  • What's in the Box: 1 outer bracket, 1 interior bracket, recommended fastener kit: 39972
