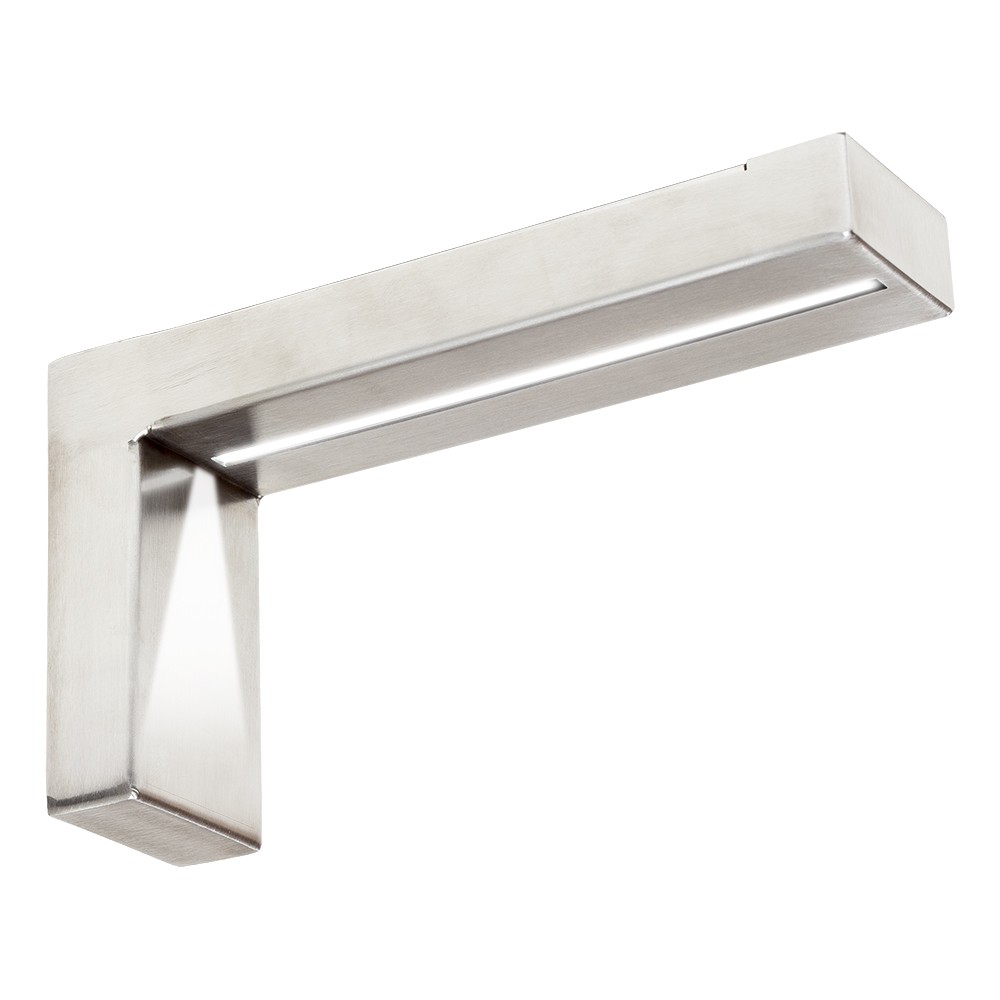

Lumiere Lighted Support



The Lumiere Lighted Support by Federal Brace is designed for countertop and shelving applications. It includes the Eco-Lucent LED Lighting System and has a low profile look, adding a special design element wherever installed. The Lumiere can be installed under cabinets for accent lighting or used for countertop overhangs to add a sparkle to your cabinet fascia, all while providing maximum space for your knees. The Lumiere Illuminated Bracket is designed to allow the maximum amount of leg room under a countertop extension on a bar countertop or island countertop. It also provides LED accent lighting and the stainless steel sleeve offers a luxury finish. This non-gusseted bracket is designed so the mounting plate extends from the cabinet base under the countertop material. The down flange will mount to the cabinet or framed structure after the face material is installed. Two .26” holes are provided on the flange for fastening.

  • Sizes: 8x4
  • Finishes: Stainless Steel Sleeve/Black Support Bracket
  • Material Thickness: 18 Gauge Sleeve and 0.25" Bracket
  • Holes: 2 - 0.26" Straight Holes and 1 - 0.50" Round Hole
  • Carry Capacity: 375 Pounds Each
  • Fasteners Not Included
  • What's in the Box: 1 non-gusseted bracket, 1 stainless steel sleeve, recommended fastener kit: 39988
  • Recommendation: Use a countertop support that extends to within 4" of the edge of your countertop
