Federal Brace: Top 5 Strongest Brackets

When it comes to heavy-duty support, not all brackets are built the same. At Federal Brace, every brace is engineered and tested to handle serious weight with confidence - whether it’s a massive countertop, a bustling commercial bar, or an industrial workspace. But among our full lineup, a few brackets stand out for their unmatched strength and durability. In this roundup, we’re spotlighting the Top 5 in Strength: the brackets that rise above the rest when only the toughest will do.

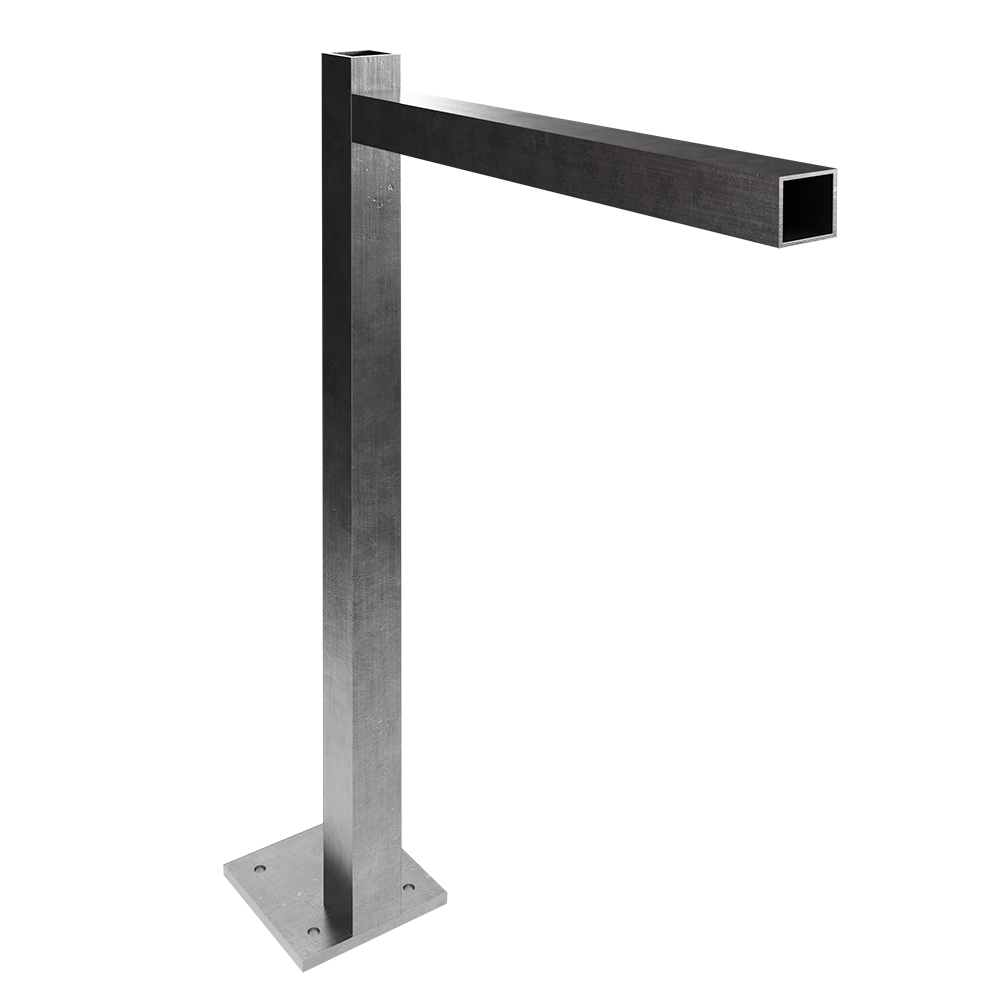

Atlas ADA Floating Vanity Support

Built for both durability and accessibility, the Atlas ADA Floating Vanity Support combines serious load-bearing power with a sleek, modern look. Designed to give vanities a true floating effect while meeting ADA compliance standards, this bracket is a go-to solution for commercial installations where the foot plate is poured into concrete.

Why It Makes the List

Unmatched Capacity: With the ability to hold up to 2,000 pounds when used in multiples, the Atlas provides unwavering support for even the heaviest stone countertops and floating vanities.

Built to Last: With 11-gauge steel tubing and a 0.5-inch foot plate, it’s designed to stay strong in high-traffic spaces like schools and public restrooms, where daily wear and tear puts strength to the ultimate test.

ADA Compliant: With its vertical support fully concealed behind the wall, it maintains accessibility while meeting ADA requirements for commercial spaces.

Key Specs

Height: 37.5"
Mounting Plate: 6" x 6"
Material: 11-gauge unfinished steel
Carrying Capacity: (1): 500 lbs, (2):1,500 lbs, (3):2,000 lbs

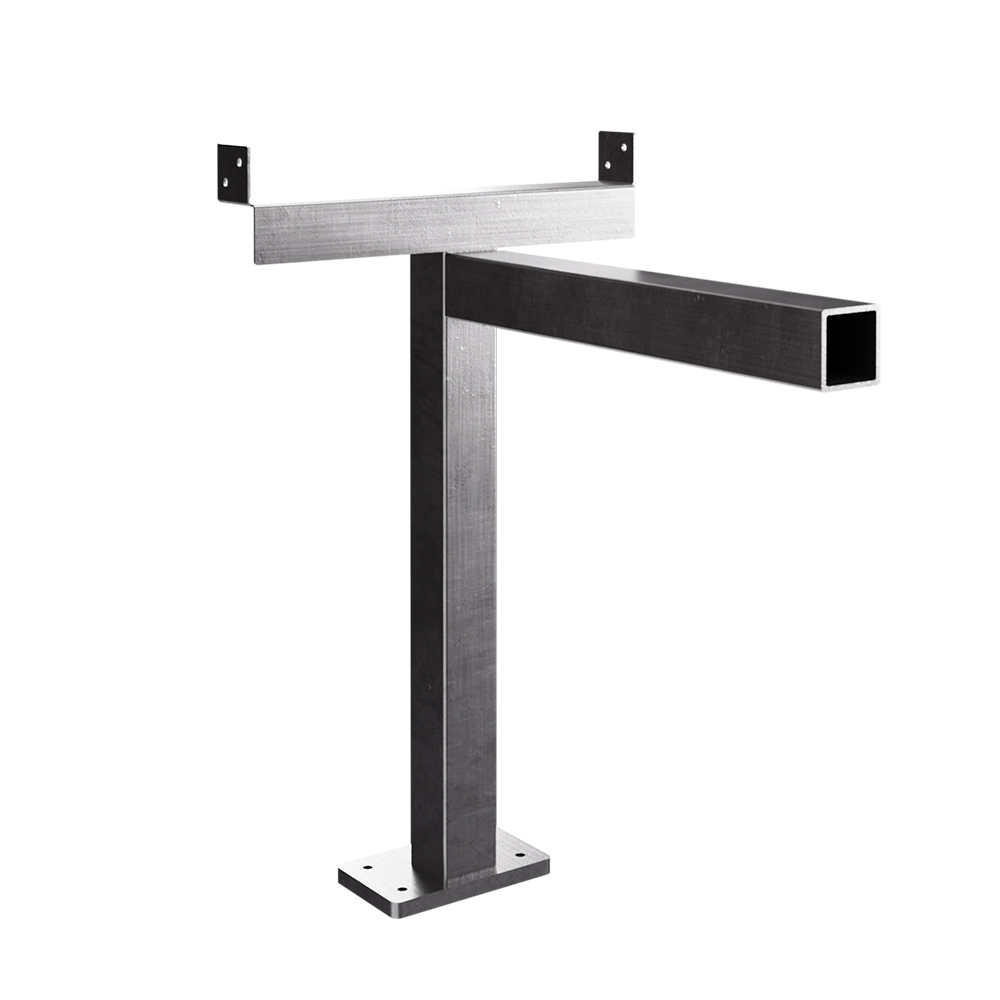

Americus Floating Bench Bracket

When it comes to floating bench support, nothing rivals the strength of the Americus. Engineered to be the strongest floating bench bracket available anywhere, it delivers an impressive 750 pounds of support strength from a single unit. Whether you’re installing a shower bench, entryway seat, or commercial seating, this bracket provides unmatched reliability in both residential and commercial spaces.

Why It Makes the List

Maximum Strength: Rated at 750 lbs per bracket, the Americus stands as the gold standard for floating bench support.

All American Craftsmanship: Made from 100% American steel and manufactured entirely in the USA, it reflects durability, quality, and pride in every way.

Built for Any Environment: From spa bathrooms to outdoor seating areas, this bracket is designed to withstand wet conditions, high traffic use, and demanding applications.

Two-Piece System: Featuring a welded vertical leg with a 14" forward flange that secures into the wall stud base, plus a horizontal brace between studs, the Americus ensures maximum stability and prevents tipping. Strong, concealed, and built for longevity, the Americus Floating Bench Bracket is a powerhouse solution for projects that demand strength without sacrificing your floating application.

Key Specs

Height: 18.25"
Mounting Plate: 3.5" x 6"
Material: 14-gauge unfinished steel
Carrying Capacity: 750 lbs (per bracket)

Carrier Granite Countertop Bracket

The Carrier Bracket is a hidden workhorse, built to give heavy countertops a clean, floating look. Designed for half-wall installations, it pairs the discreet profile of a flat plate with the added reinforcement of a gusset, delivering a 500-lb carry capacity per bracket. Its shallow gusset and minimal down flange maximize legroom, making it ideal for breakfast bars, kitchens, or reception counters that need both strength and open space.

Why It Makes the List

High Load Capacity: Each bracket is engineered to carry up to 500 lbs, perfect for granite, quartz, or other dense surfaces.

Concealed Design: When installed, the Carrier bracket remains hidden, creating a seamless floating counter effect.

Space Saving: Gusseted support delivers durability without sacrificing legroom under the counter.

Versatile Use: Suitable for residential kitchen bars or commercial reception counters.

Durable, discreet, and reliable, the Carrier Bracket balances heavy-duty strength with a streamlined, invisible finish.

Key Specs

Material: 0.25" steel
Carrying Capacity: 500 lbs (per bracket)
Mounting: Designed for half-wall installation
Design Features: Gusseted support with shallow gusset & minimal down flange

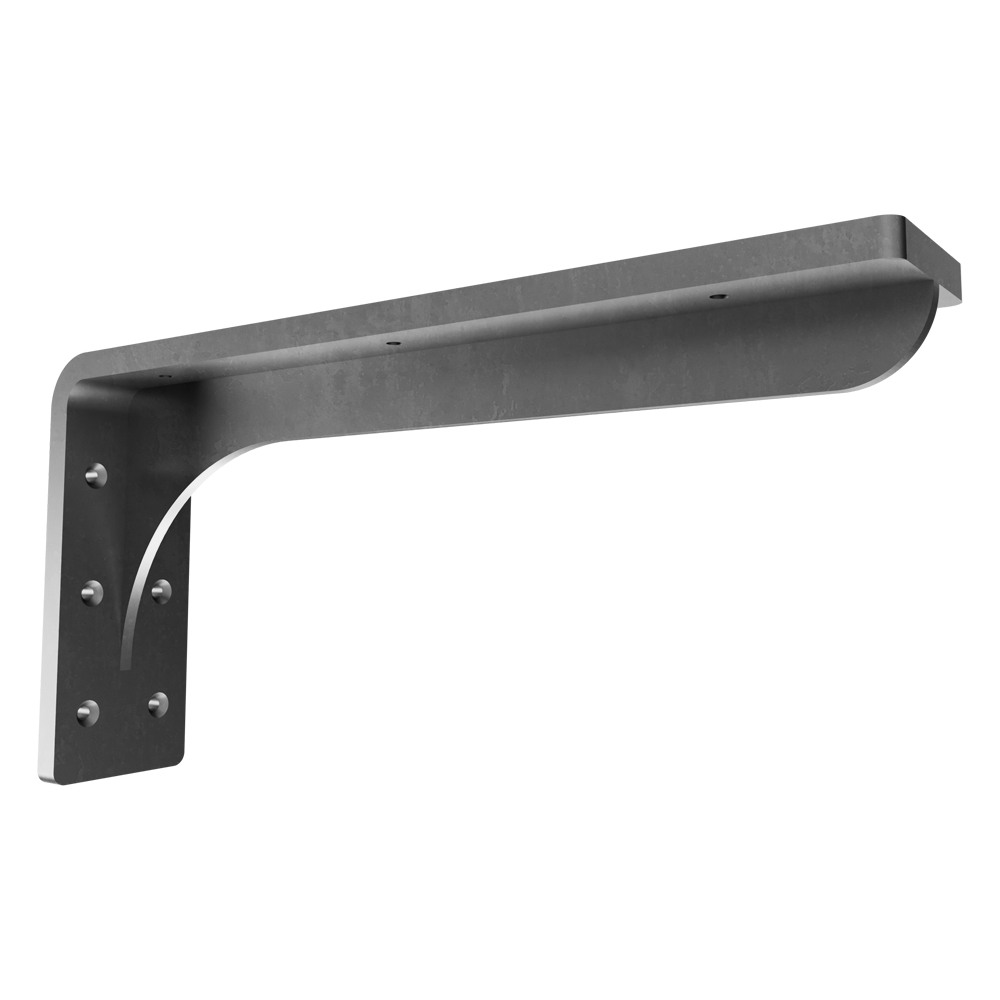

Banq Heavy Duty Bench Support

The Banq Bench Support is built for the toughest seating environments, from locker rooms and restaurants to outdoor gathering spaces. Crafted from ½-inch solid steel with a plug-welded gusset, it delivers the strength needed for heavy use while maintaining a clean, streamlined appearance. Its inwardly sloped gusset design adds both structural reinforcement and subtle style, making it a versatile option for a wide range of bench installations.

Why It Makes the List

Solid Steel Construction: Made from 0.50" thick steel, the Banq is engineered to provide lasting stability.

High Capacity: Each bracket is rated to support up to 500 lbs on its own, but when installed in multiples, they work together to handle the weight of busy seating areas with ease. For projects that demand not just pounds but tons of support, the Banq brackets deliver unfailing strength.

Secure Mounting: The 6-hole mounting plate (with countersunk design for flush finishes) ensures a tight and stable fit.

Finish Options: Available in unfinished steel ready to be painted or a classic black finish for immediate use.

Durable, practical, and built to handle demanding spaces, the Banq Bench Support is a trusted choice for projects where strength and sleek design go hand in hand.

Key Specs

Size: 16" x 8"
Material: 0.50" steel
Finishes: Unfinished steel or black
Carrying Capacity: 500 lbs (per bracket)
Mounting Holes: 6 - 0.26" countersunk, 6 - 0.26" straight

Carolina Floating Vanity Support

The Carolina Support is built for the most demanding commercial projects, from schools and restaurants to banks and office buildings. Made in the USA and finished in flat black, this bracket is engineered to hold up to 500 lbs per unit, ensuring reliable support for heavy-duty vanities and counters. Larger sizes feature an extended vertical flange that rises higher than the forward flange, providing additional fastening points for enhanced stability. With gauge thickness ranging from 11 to 7 depending on size, it delivers serious strength while maintaining a professional, streamlined look.

Why It Makes the List

Commercial-Grade Strength: Designed specifically for large-scale and high-use environments.

High Capacity: Each bracket supports up to 500 lbs, ideal for heavy counters and vanities.

Multiple Sizes: Available in 10", 12", 16", 20", and 24" lengths to suit different projects.

Durable Finish: Flat black coating provides durability and a clean appearance.

Professional-Ready: Includes extended back flanges on larger sizes for added fastening strength.

Trusted by contractors for heavy-duty jobs, the Carolina Floating Vanity Support is a reliable solution where strength, scale, and lasting performance are non-negotiable.

Key Specs

Sizes: 10", 12", 16", 20", 24"
Material Thickness: 11-7 gauge steel (depending on size)
Finish: Flat black
Carrying Capacity: 500 lbs (per bracket)
Mounting Holes: 6 or 8 - 0.26" straight holes

From floating vanities and granite counters to benches that can withstand daily use in the busiest environments, these five brackets prove that strength doesn’t have to come at the expense of style or versatility. Each one is engineered, tested, and trusted to perform where it matters most, giving you the confidence that your project will stand solid for years to come. When the demand is for maximum support and lasting reliability, Federal Brace sets the standard.
