Nevada Mantel Brackets

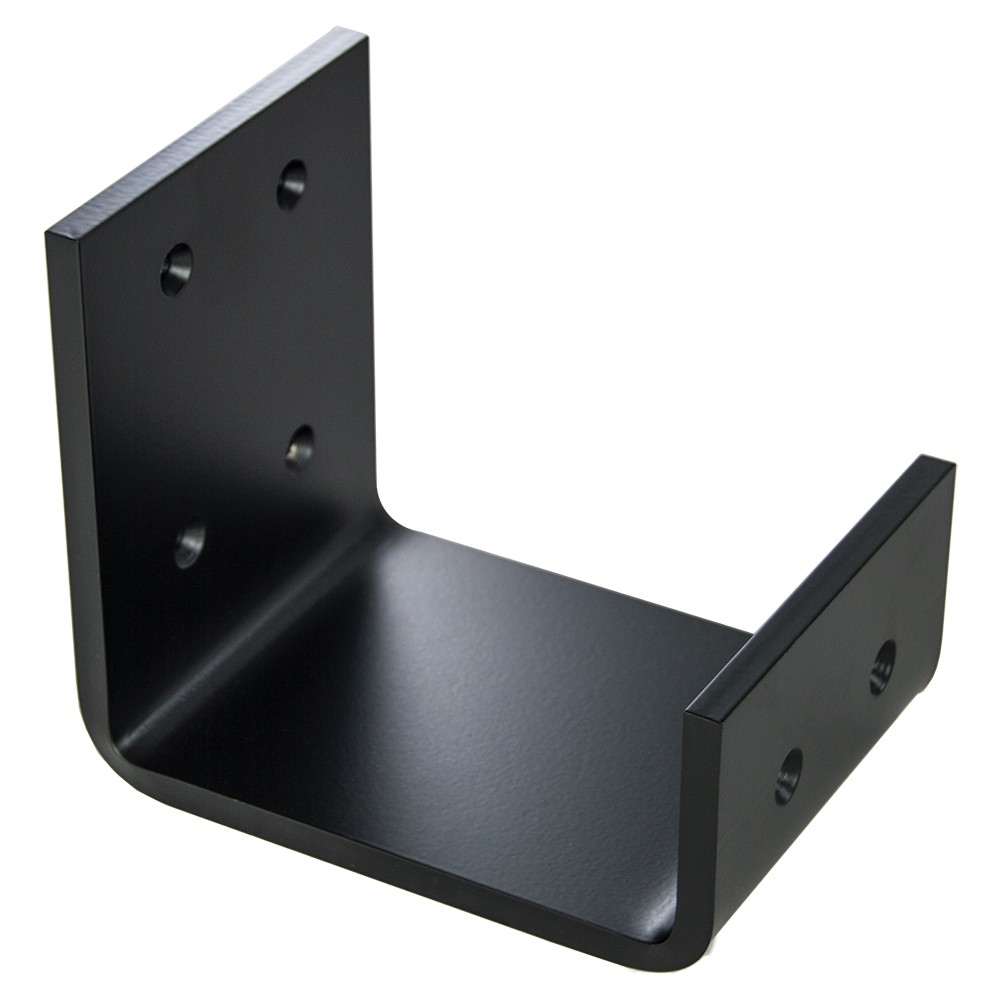

These brackets are made from a classic, thick, quality, heavy duty metal that also provides a sleek, minimalist look. Perfect for a cozy farmhouse, industrial or modern home or application. A full "U" bracket supporting 6x6 or 8x8 mantel beams, the Nevada Mantel Bracket by Federal Brace has two holes on the front wrap. The Nevada is a heavy duty mantel support in 3/8" steel, powdercoated flat black. The Nevada is 5" wide and should be spaced no more than 30" apart for your mantel support. Available for 6x6 or 8x8 beams with 4 countersunk holes to tie into the rock or stud wall for a secure structure to last the lifetime of your fireplace.

Our Mantel Brackets are designed to provide the strength that comes from 3/8” metal bracket. The carrying capacity of the Mantel Brackets is 750 lbs per pair. Each mantel bracket has 4 1/4” countersunk holes on the back flange.

Make sure that all aspects of the support substructure are considered and discussed to ensure that your mantel installation will be smooth and that your mantel support products will be sufficient.

  • Sizes: 6x6, 8x8
  • Finishes: Flat Black
  • Material Thickness: 0.375"
  • Holes: 6 - 0.26" Countersunk Holes
  • Carry Capacity: 375 Pounds Each
  • Fasteners Not Included
