Georgian Wall Mounted Bench Support

ADD TO CART

OVERVIEW

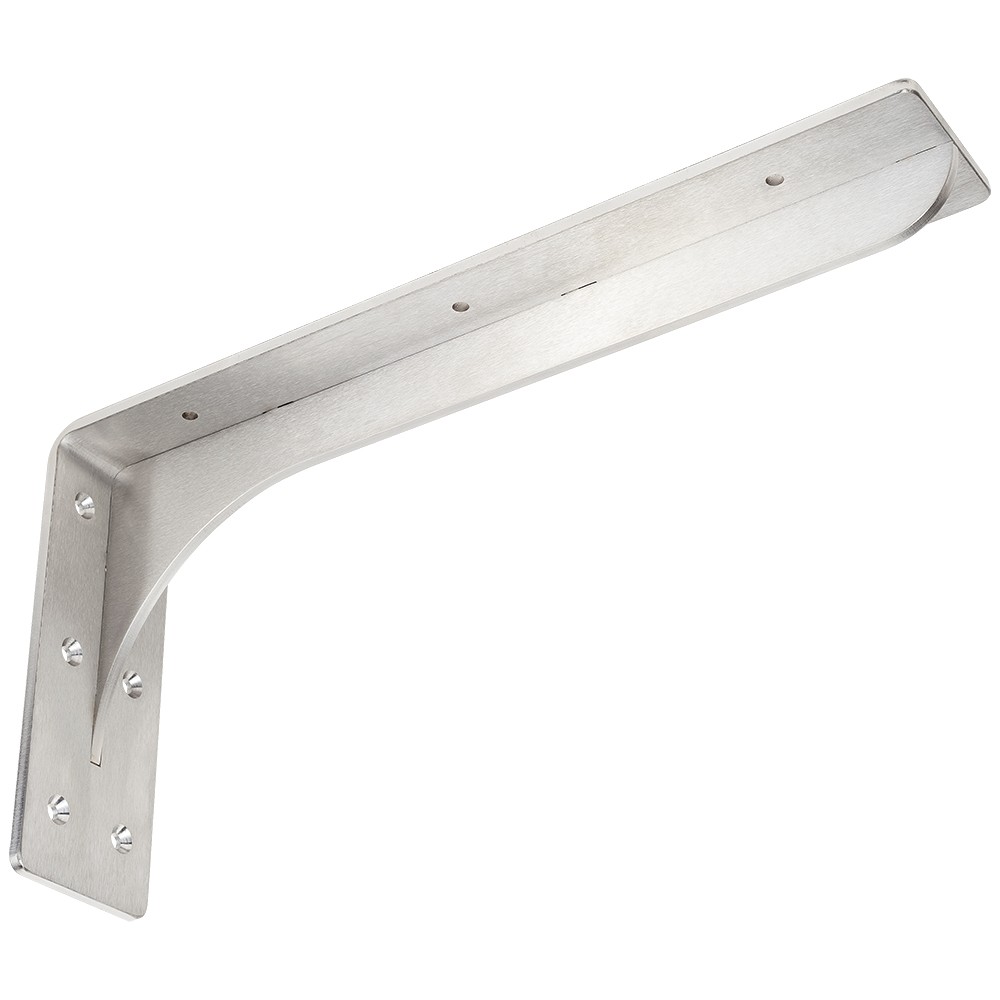

The Georgian Wall Mounted Bench Support by Federal Brace is an angle bracket with a low profile gusset providing additional support while remaining virtually invisible under the bench. For use indoors and outdoors, the Georgian bench support can be installed over tile, stone and brick with the proper tools or installed directly to the subframe. Select the size that is within 4" of the depth of your bench for maximum support. Space the brackets no greater than 30" apart in your installation and into studs for a 500 pound carry capacity.

Our Georgian Bench Support Brackets provide superior support in a clean, aesthetic look. The inwardly sloped gusset gives the bracket strength to support nearly any application while giving it a sleek look. The Georgian Bench Support is made of 1⁄4” Steel or Stainless Steel.


Not exactly what you are needing to complete your project? Our Sutherland Bench Support Bracket is similar, but does not have pre-fabricated holes on the top of the bracket.


SPECIFICATIONS
  • Sizes: 10x5, 14x7 and 16x8
  • Finishes: Stainless Steel
  • Material Thickness: 0.25"
  • Holes: 4 or 6 - 0.26" Straight Holes, 4 or 6 - 0.26" Countersunk Holes
  • Carry Capacity: 500 Pounds Each
  • Fasteners Not Included
  • What's in the Box: 1 Georgian Wall Mounted Bench Support, recommended fastener kit: 39988
