Maidan Vanity Supports

ADD TO CART

OVERVIEW

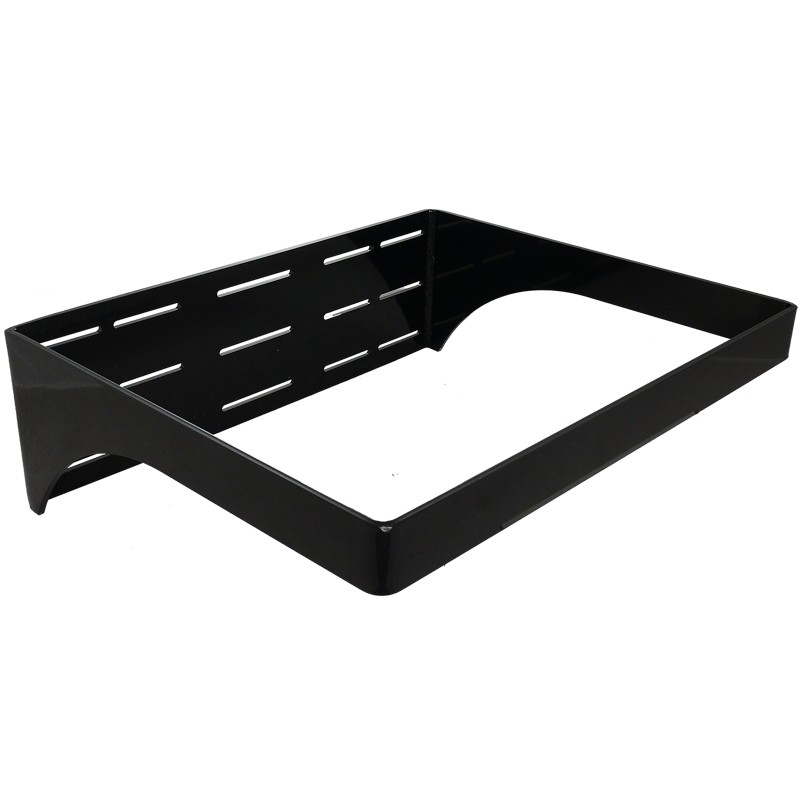

The Maidan vanity support bracket is a wall hung vanity support that provides essential carrying strength with a small front profile, easily hidden with an apron. The Maidan can also be hidden inside a base cabinet to create a floating vanity. The 18" arms and 22" width will support a 24" base cabinet and counter no deeper than 22". Additional Maidan brackets should be used for wider vanities. Mounting slots make installing into studs a snap!

 Vanity Supports will comply with the Americans with Disabilities Act (ADA) when installed per the requirements of the Accessibility Guidelines, Section 606 Sinks, of the Act.

 Federal Brace recommends using a vanity support that extends within 4" of the front edge of the vanity. Excessive overhang may cause significant force in a point load situation. Maximum load carrying capacity on vanity support brackets is 200 lbs. with 1/32 deflection.

Our Maidan Vanity Bracket is designed to provide the support strength necessary to wall mount a standard vanity in a bathroom setting. The material thickness of the Maidan Floating Vanity Support Bracket is ¼”. The Maidan Support comes in both brushed stainless steel and black powder coat painted steel materials. Slots are providing for mounting to allow positioning always to be in a stud. The Maidan Vanity Support has a 200 pound carrying capacity.

SPECIFICATIONS
  • Sizes: 18x22
  • Finishes: Stainless Steel, Black
  • Material Thickness: 0.25"
  • Holes: 15 - 0.25" Slots
  • Carry Capacity: 200 Pounds Each
  • ADA Compatible
  • Fasteners Not Included
  • Recommended Fastener Kit: 39972
  • What's in the box: 1 Maidan Vanity Support
