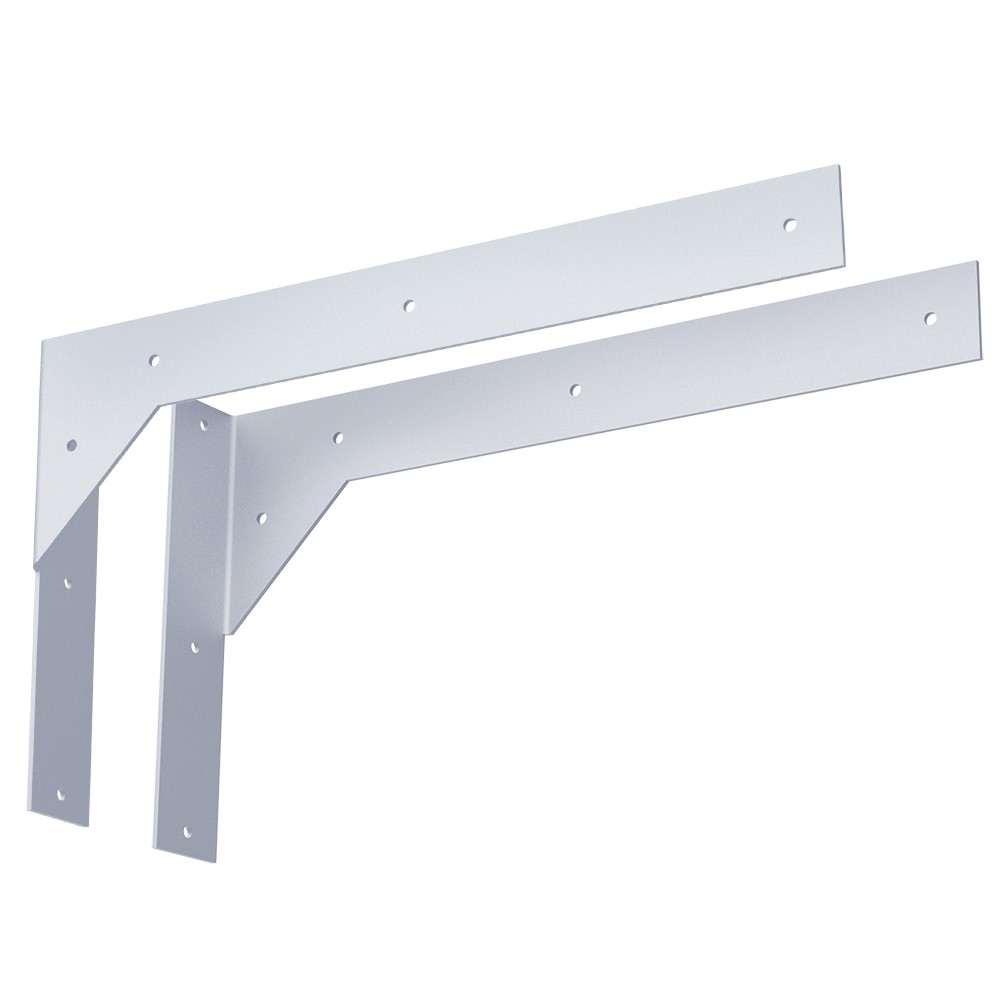

Titus Floating Vanity Support



The Titus Floating Vanity Support Bracket by Federal Brace is a perfect solution for mounting a vanity cabinet to the wall for a floating vanity installation. The Titus vanity support bracket leaves plenty of room for under mount sinks and pipes with a right and left side mount. Each support can hold 100 pounds, allowing for granite, quartz, marble, and other natural stones to be mounted along with a base cabinet. The 18" support arms are designed for 22" deep counters. Two arms are required to support up to a 24" base cabinet. The Titus is a lighter duty bracket and is not designed for use in cabinets over 24” in width.

Our Titus Vanity Brackets are designed to provide the support strength necessary to wall mount a standard vanity in a bathroom setting. The material thickness of the Titus Floating Vanity Support Bracket is 11 gauge. The Titus Support comes in galvanized steel material with a right and left side mount.

  • Size: 18"x10"x2"
  • Finishes: Galvanized
  • Material Thickness: 11 Gauge
  • Holes: 7 - 0.26" Straight Holes
  • Carry Capacity: 100 Pounds Each
  • Arms sold individually as Right or Left
  • Fasteners Not Included
  • What's in the Box: 1 Titus Floating Vanity Support, recommended fastener kit: 39972
