Lincoln Top Plate Hidden Countertop Support

ADD TO CART

OVERVIEW

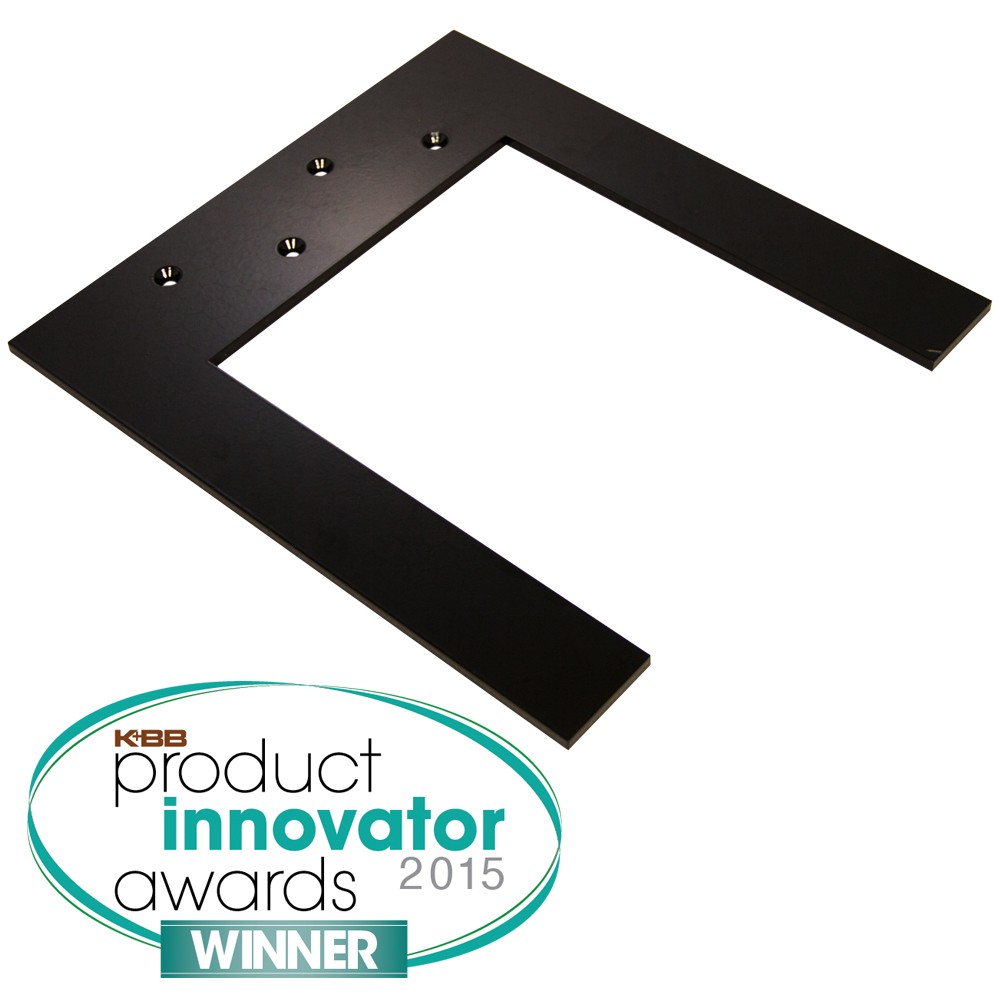

The Lincoln Top Plate Hidden Countertop Bracket by Federal Brace is a flat U shaped plate bracket that is designed to hold countertop overhangs mounted to a knee wall to create a floating counter appearance. This bracket is typically used in application configurations like breakfast bars and serving countertops.

Designed specifically for use on a half-wall to create a floating counter, the Lincoln Top Plate Hidden Countertop Support comes in a variety of sizes. The bracket is 12" wide with a 3.25" mounting area in addition to arm lengths of 10”, 12”, and 14”. Note: The size shown for the Lincoln is the length of arm extensions under your counter. The Lincoln has the additional 3.25" that mounts over the 2x4 stud wall. (Ex. Overall length of the 10x12 is 13.25"). This plate is designed to be installed, side by side with the additional usage of our Liberty Hidden Countertop Support Plates if needed. Check out the installation guide for full installation instructions and guidelines.

The best part about the Lincoln Top Plate is the multiple hole design. It allows you to fasten the top plate without hitting the nails in your framework. This means that you can use alternating holes to fasten the bracket to your substructure.


SPECIFICATIONS
  • Sizes: 10x12, 12x12, 14x12
  • Finishes: Black and Stainless Steel
  • Material Thickness: 0.25"
  • Holes: 4 - 0.26" Countersunk Holes for Flush Mount
  • Carry Capacity: 375 Pounds Each
  • Fasteners Not Included
  • What's in the Box: 1 Lincoln Top Plate Hidden Countertop Support, recommended fastener kit: 39988
  • Recommendation: Use a countertop support that extends to within 4" of the edge of your countertop
